Geocell Erosion Control is an efficient and reliable erosion control and soil stabilization solution. Its unique three-dimensional structure and excellent physical properties can significantly improve the quality and durability of projects, protect the environment and extend the life of projects through the correct selection and installation of geocells.
| Cell depth | 50mm, 100mm, 150mm, 200mm, 250mm |
|---|---|
| Welding distance | 330mm-1000mm |
| Thickness | 1.0mm-1.7mm |
| Surface | with or without holes |

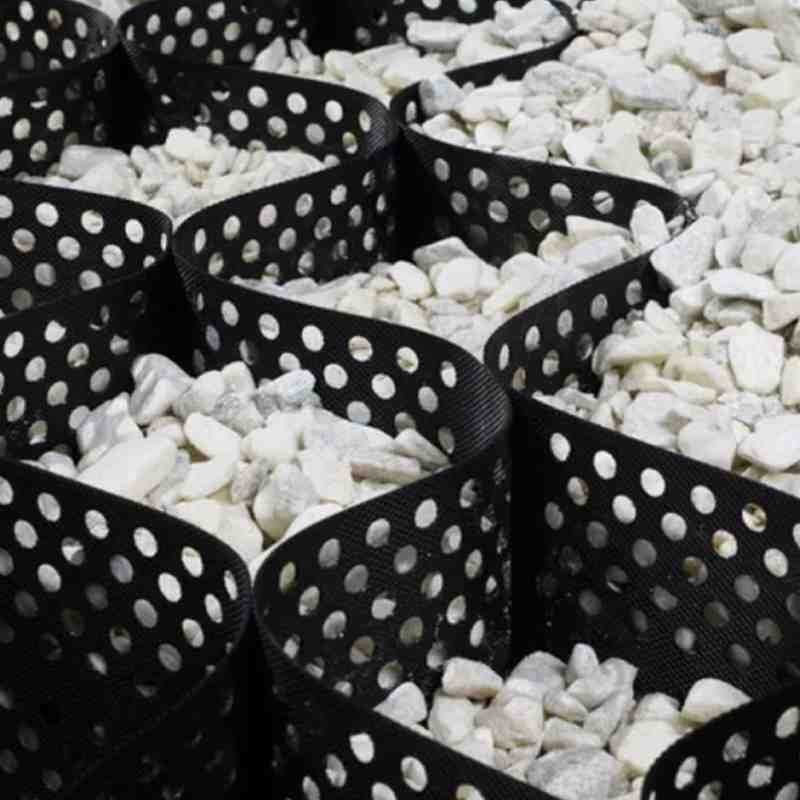

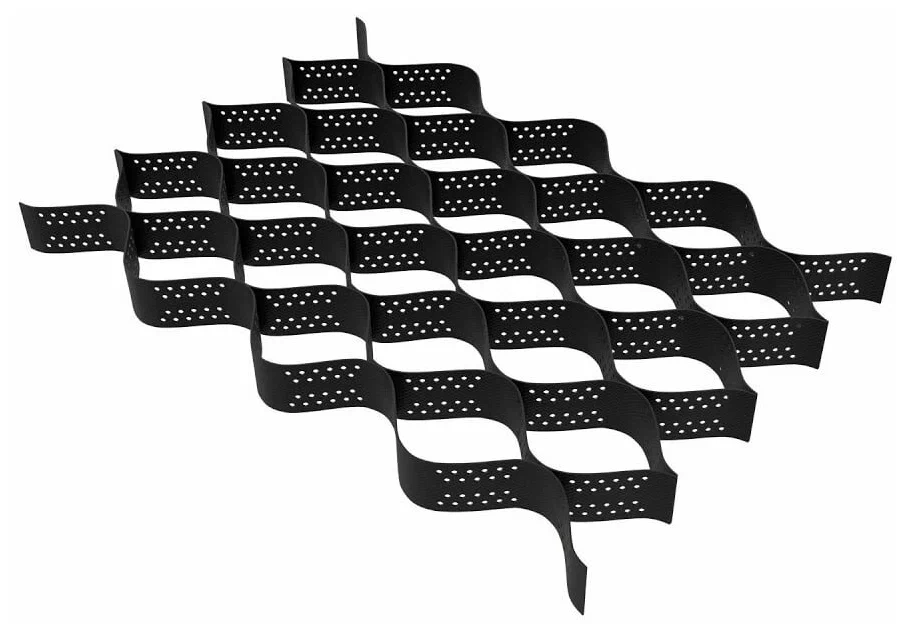

Geocell erosion control is a three-dimensional grid structure made of high-density polyethylene (HDPE) or other polymer materials. It is formed by welding flat plastic sheets into honeycomb cells to form a three-dimensional structure that can be filled with soil, sand, gravel or other fillers. This structure has excellent performance in erosion control and soil stabilization.Support customized special product models, please contact our sales staff.
| Properties | TestMethod | Unit | Value | |||||
| Polymer | – | HDPE | ||||||
| Density | ASTM D1505 | g/cm3 | 0.94 | |||||
| Carbon black content | ASTM D1603 | % | 1.5 | |||||
| Sheet thickness (Smooth) | ASTM D5199 | mm | 1.1or1.2 | |||||
| Sheet thickness (Textured) | ASTM D5199 | mm | 1.5 | |||||
| Seam peel strength | Celldepth | |||||||
| N | 75mm | 1060 | ||||||
| N | 100mm | 1420 | ||||||
| N | 150mm | 2130 | ||||||
| N | 200mm | 2840 | ||||||
| Weld spacing | mm | 330 | 356 | 400 | 445 | 660 | 712 | |
| Expanded cell size (WxL) | mm | 244X203 | 259X224 | 295X250 | 320X287 | 488X408 | 508X475 | |
| Expanded panel size (WxL) | m | 2.44X6.15 | 2.56X6.52 | 4X5 | 2.56X8.35 | 2.44X12.29 | 2.56X13.72 | |
| Expanded panel area | m2 | 15 | 16.7 | 20 | 21.4 | 30 | 35.12 | |
1.High strength: geocell erosion control has high tensile and compressive strength, which can effectively disperse and transfer stress in the soil.
2.Corrosion resistance: Made of corrosion-resistant materials such as high-density polyethylene, it can be used for a long time in harsh environments.
3.Good permeability: Allows water to pass freely while preventing soil particles from being lost and maintaining soil stability.
4.Flexibility: Easy to install and lay, able to adapt to various terrains and irregular surfaces.
5.Environmentally friendly: The material is recyclable and has little impact on the environment.

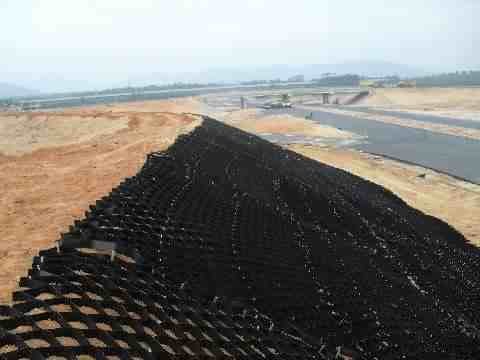

1.Slope protection: used for slope reinforcement to prevent landslides and soil erosion, especially for steep slopes and unstable areas.
2.Road construction: as a roadbed reinforcement material, it improves the bearing capacity and stability of the road and reduces uneven settlement.
3.Railway construction: strengthens the track foundation, prevents soil particles from entering the ballast layer, and ensures the safety of train operation.
4.Dyke protection: used in dyke and bank protection projects to prevent soil erosion and enhance the stability of the structure.
5.Landfill: as part of the anti-seepage layer, it prevents pollutants from seeping into groundwater.
6.Landscaping: used for vegetation coverage to promote plant growth while providing soil protection.
7.Water conservancy projects: used for channel lining, reservoir bottom anti-seepage, etc.
Working Principle
1.Filling and Compaction: The geocell erosion control is unfolded and fixed on the ground, then filled with soil, sand, gravel or other fillers and compacted. The filling material is confined in the cell to form a stable three-dimensional structure.
2.Dispersing Stress: The geocell erosion control can effectively disperse and transmit the stress in the soil through its unique three-dimensional structure, improving the stability of the overall structure.
3.Preventing Erosion: The cell structure can prevent the movement of soil particles and prevent soil erosion, especially under the impact of rainfall or water flow, maintaining the integrity of the soil.
Advantages；
1.Improve stability: significantly improve the bearing capacity and stability of the soil, and reduce uneven settlement.
2.Prevent erosion: effectively prevent soil erosion and protect the ecological environment.
3.Easy construction: the installation process is simple and fast, saving time and cost.
4.Strong durability: the material is corrosion-resistant and aging-resistant, and has a long service life.
5.Versatility: suitable for a variety of engineering fields and has a wide range of applicability.
Installation steps；
1.Preparation: Clean the construction site and remove weeds, gravel and other debris.
Measure and mark the area where the geocell needs to be laid, making sure the foundation is flat and free of sharp objects to prevent the cell from being damaged.

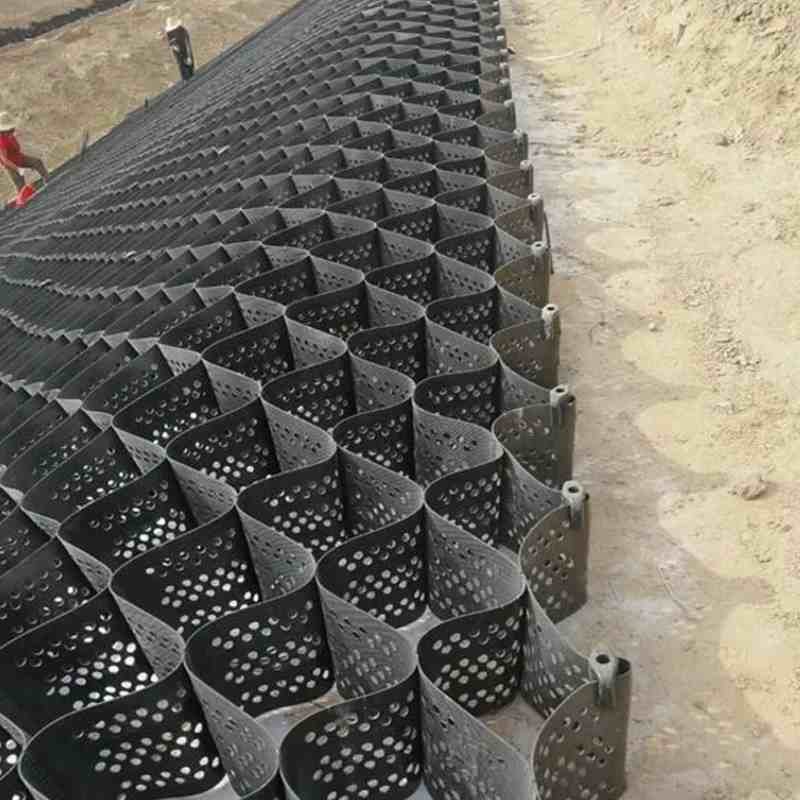

2.Laying the geocell erosion control: The geocell erosion control is unfolded and fixed to the ground, usually using anchors or other fixings to ensure that the cell is flat, without wrinkles and damage.
3.Filling and compaction: Fill the cell with soil, sand, gravel or other fillers, and use mechanical equipment to compact in layers to ensure that the fill is evenly distributed and dense.
4.Inspection and maintenance: Check the quality of laying to ensure that there are no voids or loose places, and perform regular maintenance, especially for areas prone to erosion, and repair any damaged parts in time.
Shandong groadgeo Engineering Materials Co., Ltd. is a company dedicated to the research and development, production, and sales of geotechnical materials and related engineering products, committed to providing high-performance engineering materials for industries such as roads, bridges, railways, water conservancy, and environmental protection. Main products; Geotextile, geomembrane, geogrid, geonet, geotextile bag, composite geomembrane, etc. The product is widely used in infrastructure construction, environmental protection, mining, landfill, road reinforcement and other fields. With advanced production technology and rich industry experience, the company has become one of the important suppliers in the geotechnical materials industry.
1.Road foundation reinforcement: In the construction of infrastructure such as roads, airport runways, and railways, geotechnical materials are used to enhance the bearing capacity of the foundation and prevent uneven settlement. For example, geotextiles, geogrids, and geomembranes can be used to separate different soil layers, enhance soil stability, and reinforce foundations.
2.Dams, revetments, and reservoirs: Geotechnical materials are commonly used in hydraulic engineering for anti-seepage, drainage, and reinforcement purposes. Geomembranes, geotextiles, and geogrids are widely used for anti-seepage treatment of dams, lake and reservoir bottoms and sides, to prevent water infiltration and ensure structural stability.
3.Anti seepage and isolation of landfills: Geomembranes and geotextiles play a role in preventing seepage, isolation, and pollution at the bottom and sides of landfills. Geomembranes can effectively prevent the pollution of groundwater sources by leachate from garbage, while geotextiles provide filtration to prevent the infiltration of small particles.
Slope protection: In mountainous and sloping areas, geotechnical materials such as geotextiles, geonets, and geogrids are commonly used to prevent soil erosion. They effectively control soil erosion by stabilizing soil structure, reducing water flow erosion, and promoting vegetation restoration.
1.Geogrid: Used for reinforcing the shore to prevent wave erosion of soil and enhance the stability of protective walls.
2.Geotextile: Used to prevent soil erosion and help fix vegetation. It can improve soil stability, promote plant growth, and reduce soil erosion.
3.Geomembrane: As an anti-seepage material, it prevents seawater from invading the soil layer behind it, ensuring long-term effectiveness of protective measures.
4.Geonet: Used to enhance protective structures, especially in the reinforcement of vertical walls and slopes.
The importance of geotechnical materials in various complex environments and projects, whether it is infrastructure construction, water conservancy engineering, environmental protection, or soil reinforcement and waterproofing, geotechnical materials can play a key role. They help solve engineering problems and ensure the successful implementation of projects by improving soil properties, enhancing structural stability, protecting the environment, and improving durability.
Shandong Groadgeo Engineering Materials Co., Ltd., with its strong technical strength, advanced production equipment, and rich industry experience, has become one of the leading enterprises in the geotechnical materials industry at home and abroad. Through continuous innovation and product optimization, Lutai Company not only occupies an important position in the Chinese market, but also establishes a good brand image in the international market.
1.Advanced production equipment: The company has introduced internationally advanced production equipment and adopted high-tech production processes to ensure that every product meets international quality standards.
2.Independent research and development capability: Lutai Company has a technically strong R&D team that continuously develops new products and innovates technology, striving to maintain technological leadership in the field of geotechnical materials.
3.Quality control: The company has a sound quality management system, and all products have passed ISO9001 quality management system certification to ensure stable and reliable quality of each batch of products.
