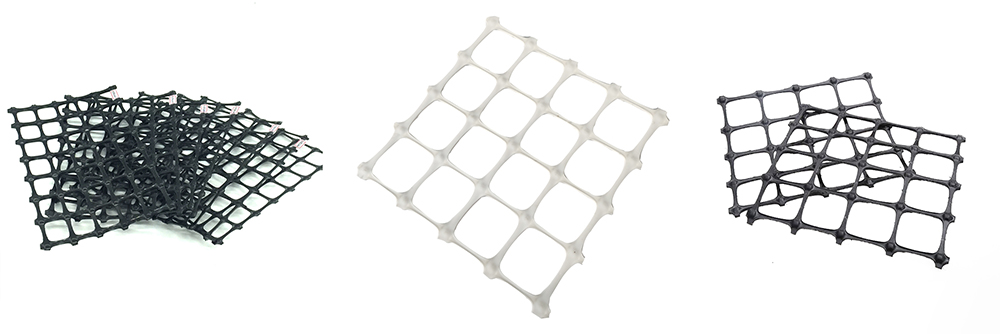

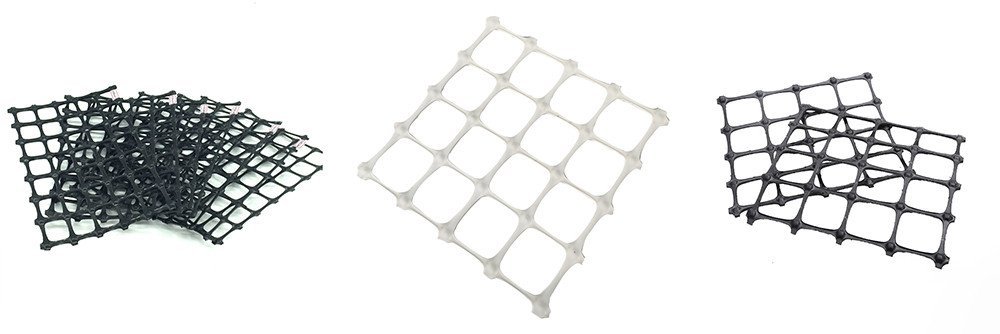

What is PP biaxial geogrid ?

PP biaxial geogrid is made of polypropylene (PP for short) and adopts a special production process, which makes it have excellent tensile strength and deformation resistance in both directions (longitudinal and transverse). It forms a good combination with the soil through the mesh structure, achieving the functions of strengthening the soil, dispersing the load, and improving the stability of the soil. It is widely used in many engineering fields such as roads, railways, dams, and water conservancy facilities.

Definition: Geogrid is a mesh structure material made of high molecular polymer (such as polypropylene PP, polyethylene PE) through stretching, weaving or welding process, used for foundation reinforcement, soil stabilization and load dispersion in civil engineering.

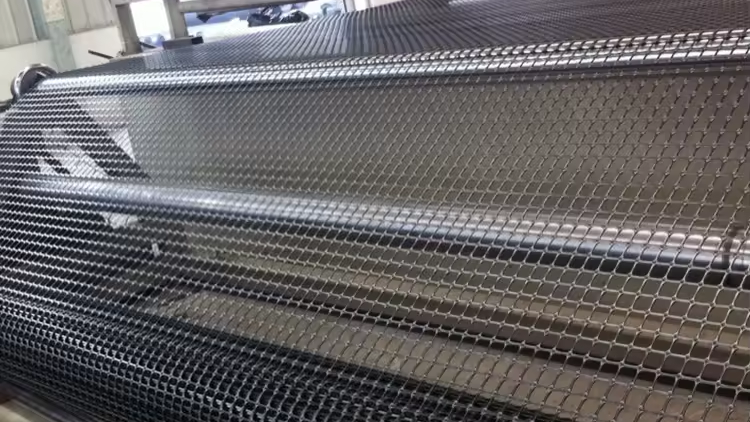

PP biaxial geogrid Production process

The production process of PP biaxial geogrid includes the following key steps:

• Melt extrusion molding: First, the polypropylene (PP) particles are heated to a molten state and extruded into a strip film through an extruder.
• Stretching process: Through longitudinal and transverse stretching technology, the fiber arrangement direction of the geogrid is controlled to make it have excellent tensile strength in both directions. This process ensures the mechanical properties of the grid in multiple directions and improves its deformation and shear resistance.
• Forming: The stretched grid needs to be heat treated through a shaping process to ensure its dimensional stability and structural stability.
• Surface treatment: In some applications, PP biaxial geogrid may be added with anti-ultraviolet and anti-oxidation additives to improve its weather resistance and long-term performance.
• The biaxial stretching production process makes PP biaxial geogrid have more balanced mechanical properties than uniaxial geogrids, and can more effectively disperse the load of the soil and limit the deformation of the soil during use.

Main performance characteristics of biaxial geogrid

• Excellent tensile strength and stiffness; PP biaxial geogrid has good tensile strength, especially high tensile modulus in both longitudinal and transverse directions. This enables it to withstand large external loads, limit the settlement and deformation of the soil, and thus enhance the stability of the structure. The tensile strength is usually between 20kN/m and 150kN/m, and the specific value varies depending on the type of material and the production process.
• Good shear strength; the friction between the soil, PP biaxial geogrid can effectively improve the shear strength of the soil and prevent the soil from slipping and landslide under load. It has a strong bond with the soil and can increase the reinforcement effect. It is especially suitable for slope protection, dam reinforcement and landslide prevention projects.
• Chemical corrosion resistance; PP biaxial geogrid has strong chemical resistance and can adapt to the erosion of chemical substances such as acids and alkalis in the soil. Therefore, it is suitable for a variety of soil environments, especially in highly corrosive environments, and can ensure its long-term stability.
• Anti-ultraviolet ability: PP biaxial geogrid has strong anti-ultraviolet ability and can resist long-term sun exposure and ultraviolet radiation. This feature makes it very suitable for open-air environments and engineering projects exposed to the sun for a long time, such as road reinforcement, dam reinforcement, etc.
• High temperature resistance: PP has good heat resistance, and PP bidirectional geogrid can be used at higher temperatures, so it is suitable for use in civil engineering in warm or tropical areas, and can resist the impact of high temperature environment on soil and structure.
• Convenient construction: The construction process of PP bidirectional geogrid is relatively simple, and it can be laid directly on the soil without complex equipment or excessive manual operation. Its mesh structure allows it to effectively adapt to different shapes of terrain and soil during construction, providing great convenience for reinforcing the soil.

Main application areas of PP biaxial geogrid

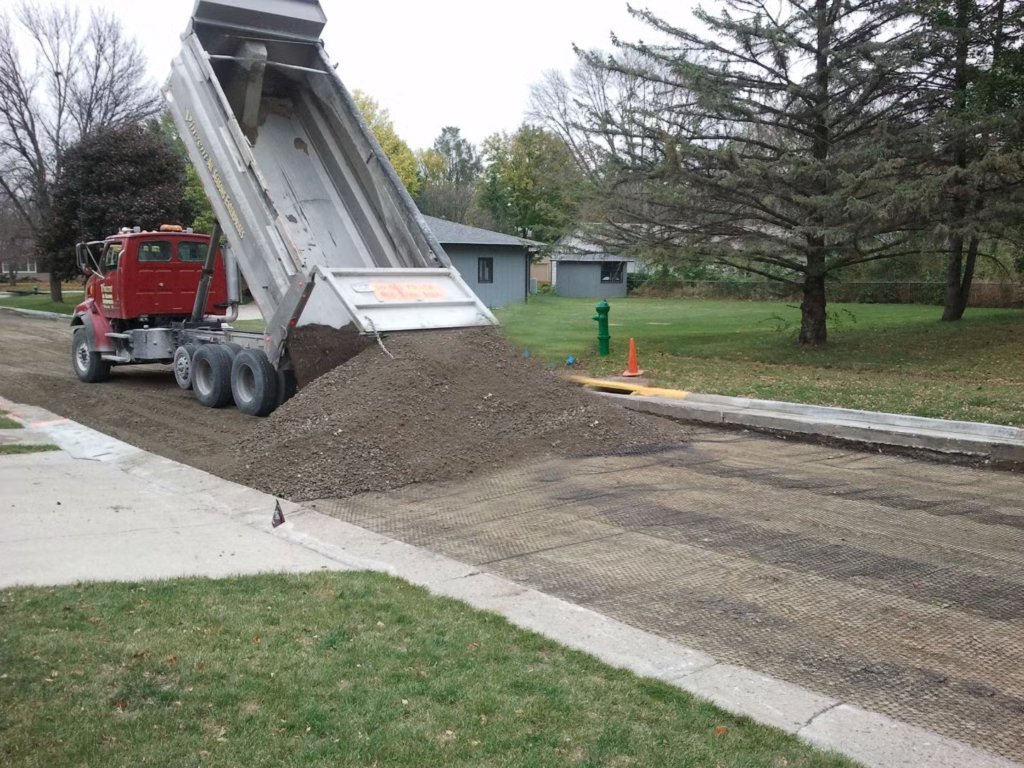

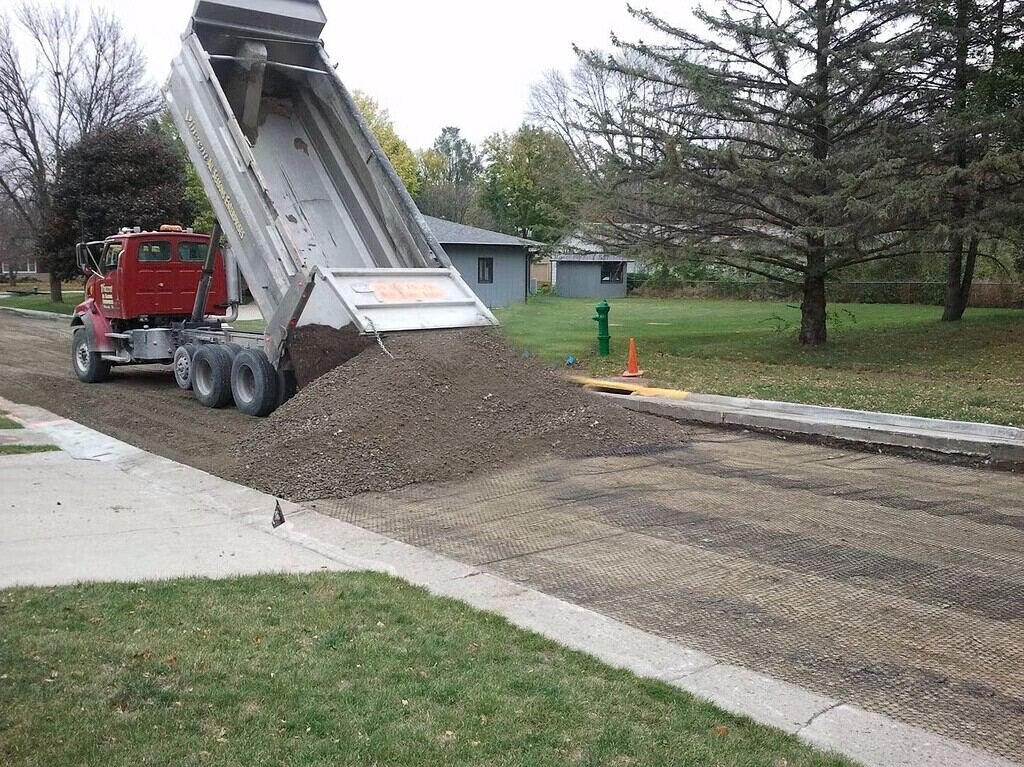

• Road and railway subgrade reinforcement; PP biaxial geogrid is often used for subgrade reinforcement in soft soil areas. By laying geogrids in the subgrade soil layer, the load can be effectively dispersed, uneven settlement can be reduced, and the bearing capacity of the subgrade can be significantly improved to ensure the stability of the road. Especially in the construction of highways and railways, PP bidirectional geogrids play an irreplaceable role.
• Dyke reinforcement and water conservancy projects; PP biaxial geogrid are used to enhance the stability of soil in water conservancy projects such as dykes, revetments, and dikes. It can effectively prevent water erosion and soil sliding, and is especially suitable for the reinforcement of flood control dams and reservoir dams to prevent soil erosion and damage by water pressure.
• Slope protection and landslide control; In areas with complex terrain such as hillsides and slopes, landslides and soil instability are common engineering problems. By using PP bidirectional geogrids, the shear strength of the slope can be effectively improved, the risk of landslides can be reduced, and the slope can be reinforced to enhance its stability.
• Landfill and solid waste projects: In the construction of landfills, PP biaxial geogrid are widely used to enhance the stability of landfill soil. It can prevent settlement and cracking problems that occur during garbage accumulation, ensure the long-term stable operation of the landfill, and at the same time improve the bearing capacity of the soil and reduce environmental pollution.
• Soil improvement and agricultural applications: In agricultural soil improvement projects, PP bidirectional geogrids can be used to enhance soil stability and prevent soil erosion or excessive compaction. It can improve soil erosion problems and help improve land use efficiency, especially in mountainous areas or areas with severe soil erosion.

Advantages of PP biaxial geogrid

• Efficient reinforcement performance: Through the bidirectional tensile structure, PP bidirectional geogrid has strong bearing capacity and anti-deformation ability in both directions, which can effectively disperse the load and improve the stability of the soil.
• Corrosion resistance and durability: It has strong resistance to chemical corrosion and UV resistance, adapts to a variety of harsh environments, and extends the service life of the project.
• Simple construction: The construction process is relatively simple, easy to lay, does not require too many technical requirements, and saves manpower and material resources.
• Economic benefits: By reducing the frequency of maintenance and reinforcement, the long-term use cost is low, which can effectively improve the overall economic benefits.

Conclusion

PP biaxial geogrid plays an increasingly important role in civil engineering due to its excellent performance, wide application range and convenient construction. Whether in infrastructure construction such as roads, railways, dams, landfills, or in environmental protection projects such as slope protection and soil improvement. If you need customized specifications or technical consultation, please contact us for detailed solutions!
