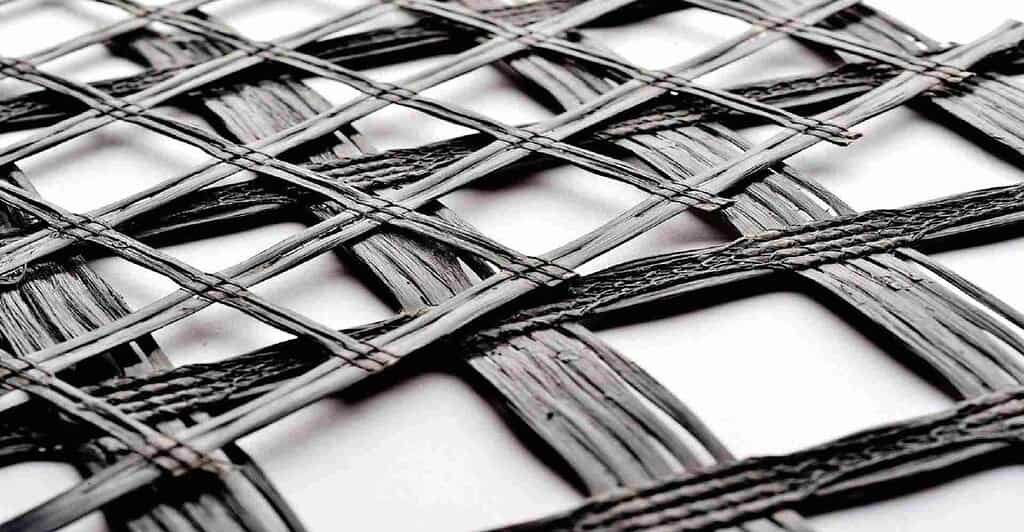

Polyester geogrid is a geosynthetic material made of polyester (PET) as the main raw material and processed by special technology. As a reinforcement material widely used in roads, railways, dam foundations, embankments and other projects, polyester geogrid has become an indispensable technical product in the field of modern civil engineering due to its superior mechanical properties, chemical resistance, aging resistance and corrosion resistance.
The material and composition of polyester geogrid
The core raw material of polyester geogrid is polyester fiber (Polyester, referred to as PET). Polyester is a synthetic polymer material widely used in textile, packaging, automotive and other industries. The preparation of polyester geogrid mainly depends on the tensile properties of polyester, which makes the geogrid have excellent tensile strength, wear resistance and stability.

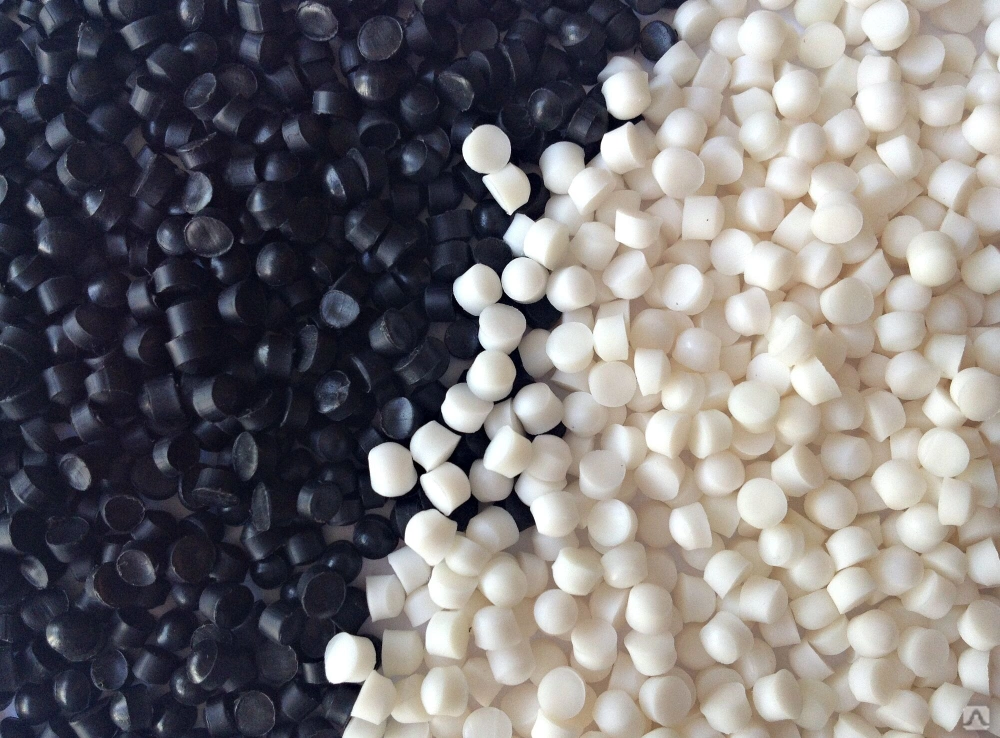

Polyester is a synthetic polymer obtained by the reaction of diols and dibasic acids. Common polyesters include polyethylene terephthalate (PET) and polybutylene terephthalate (PBT). Polyester is widely used in the manufacture of geogrids due to its excellent mechanical properties, heat resistance and corrosion resistance.
During the manufacturing process, polyester fibers can be made into filaments through melt spinning technology and further processed into a mesh structure, which provides the strength, flexibility and stability required for geogrids. By strengthening the molecular chain structure of polyester, its durability and tensile strength in harsh environments can be improved.
Production process of polyester geogrid
- The production process of polyester geogrid is to stretch polyester fiber into a film and process it into a grid structure through mechanical or hot pressing process. The fineness of the production process directly determines the mechanical properties and service life of the geogrid.
- Stretching process: During the production process, polyester fiber first needs to form fiber lines through melt spinning technology, and then stretch the molecular chains of polyester fiber in the longitudinal and transverse directions to make them more orderly, thereby improving its tensile strength. This stretching process is the key to the strength of polyester geogrid. It enables the material to maintain good stability during stretching and withstand greater loads during use.

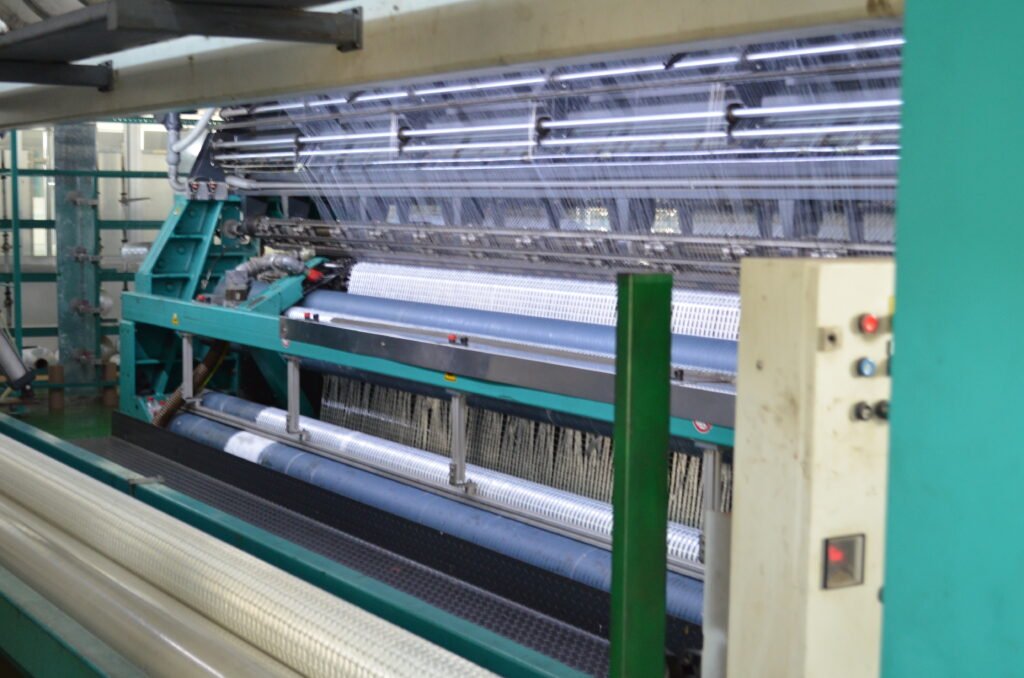

- Grid weaving: After stretching, the polyester fiber will enter the grid weaving stage. This stage usually uses mechanical weaving technology to form a grid structure by interweaving fibers. During the weaving process, the density and size of the grid can be adjusted according to different engineering requirements to ensure that the geogrid can provide sufficient strength and stability in practical applications.
- Post-processing: The durability and UV resistance of polyester geogrid are usually post-processed during production. These treatments include UV-resistant coatings, anti-corrosion coatings, and chemical stability enhancement treatments. The implementation of these processes can effectively extend the service life of geogrids, especially when used in high temperature, high humidity or other extreme environments.
Characteristics of Polyester Geogrid
As an important material in civil engineering, polyester geogrid has many unique properties, which makes it widely used in strengthening soil, stabilizing foundations, and enhancing road surfaces. The following are the main performance characteristics of polyester geogrid:
- High tensile strength; polyester geogrid has very high tensile strength, and its strength can reach more than 200kN/m according to different specifications and usage requirements. This means that it can withstand large loads in foundation reinforcement and road construction, and maintain its strength and stability during load changes.
- Excellent anti-aging performance; polyester materials have good anti-aging properties. Specially treated polyester geogrid can resist erosion by environmental factors such as ultraviolet rays, oxygen, and moisture, and can maintain its excellent physical properties even after long-term exposure to sunlight. Therefore, it is suitable for various harsh climatic conditions, especially for road and infrastructure construction in high temperature, high humidity and cold areas.
- Good chemical resistance; polyester geogrid has strong chemical resistance and can resist erosion by most acids, alkalis, salts and other chemicals. This makes it very durable in chemically corrosive environments, such as industrial areas, port areas, etc., where polyester geogrids can still maintain long-term stable performance.
- Good friction performance: Polyester geogrids have a high friction coefficient and a large friction force with the soil, which helps to enhance the stability of the soil. Geogrids effectively improve the reinforcement effect through the physical constraint of the grid structure, especially in adverse geological conditions, and can significantly reduce foundation settlement and deformation.
- High water permeability: The grid structure of polyester geogrids makes it have good water permeability. It can effectively remove excess water and avoid problems such as soil softening or roadbed settlement caused by water accumulation. This is of great significance for improving the hydrological conditions of road foundations.
Application fields of polyester geogrid
Polyester geogrid is widely used in civil engineering, especially in roads, railways, dams, bridge foundations, etc. The following are the main application fields of polyester geogrid:

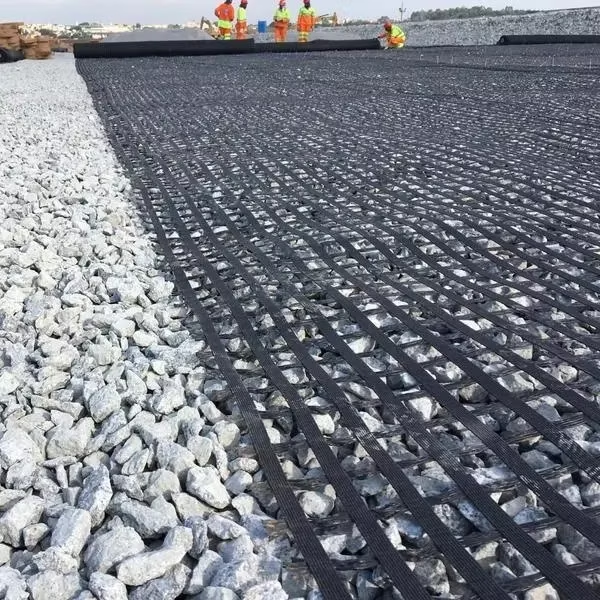

- Road and railway foundation reinforcement; In soft soil or uneven settlement areas, the use of polyester geogrid can effectively enhance the stability of the roadbed. By laying geogrids, the bearing capacity of the roadbed can be significantly improved, the risk of settlement can be reduced, and the service life of roads and railways can be extended.
- Dyke and slope protection engineering; Polyester geogrid is often used for the reinforcement of dams and slope protection. Due to its excellent tensile strength and durability, it can enhance the shear strength of the soil, prevent dam landslides and slope collapse, and ensure the safe operation of water conservancy projects.
- Airport and port construction; Foundation reinforcement is a very critical link. Polyester geogrid can effectively improve the bearing capacity of the foundation and prevent damage to facilities such as airport runways and port terminals due to foundation settlement or deformation.
- Landfill and garbage dump projects; Polyester geogrids are also widely used in the reinforcement of landfills and dumps. These sites usually have soft soil and high bearing pressure. Polyester geogrids can provide additional reinforcement to ensure the stability and durability of the site.
- Environmental protection and ecological restoration; Polyester geogrids are also widely used in ecological restoration and environmental protection projects. In projects such as preventing soil erosion and ecological greening, geogrids can provide support, enhance soil stability, and promote plant growth, which helps to restore the ecological environment.
Advantages of Polyester Geogrid
- High Strength and Durability: Polyester geogrid has high tensile strength and durability, and can maintain its stable performance during long-term use.
- Good Environmental Adaptability: Polyester geogrid has strong chemical resistance and UV resistance, and can be used in various environmental conditions.
- Easy Construction: The construction process of polyester geogrid is relatively simple, saving a lot of time and labor costs.
- High Cost-effectiveness: Although the initial investment of polyester geogrid is high, its long-term stability and effect make it highly cost-effective.
Conclusion
As an important geosynthetics, polyester geogrid has been used more and more widely in civil engineering. By properly selecting and using polyester geogrid, the stability and durability of engineering structures such as foundations and roadbeds can be greatly improved, ensuring the quality of the project. We can provide customized solutions to ensure that your project achieves the best results. Welcome to contact us for more product details and quotes!
