As an important water conservancy facility, the reservoir undertakes multiple functions such as regulating water resources, water supply, flood control, irrigation and power generation. However, in the long-term operation of the reservoir, leakage is often a key factor affecting the effective use of water resources. In order to improve the anti-seepage performance of the reservoir, smooth geomembrane (HDPE geomembrane) has become a widely used mainstream anti-seepage material. Its excellent anti-seepage performance, durability and environmental protection characteristics make it play an irreplaceable role in reservoir anti-seepage projects.
This article will introduce the characteristics of smooth geomembrane in detail, and deeply analyze its five major advantages in reservoir anti-seepage projects. At the same time, combined with actual application cases, it will explore how to maximize the use of geomembranes through reasonable design and construction, and provide technical references for water conservancy project construction.
What is smooth geomembrane ?

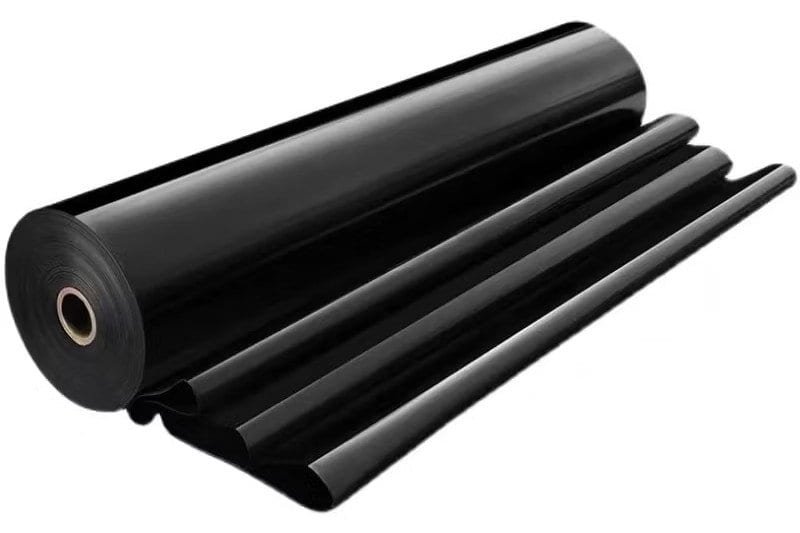

Smooth geomembrane (HDPE geomembrane) is an anti-seepage membrane made of high-density polyethylene (HDPE) material with a smooth and uniform surface and excellent waterproof and anti-seepage capabilities. The product has good mechanical strength, chemical corrosion resistance and aging resistance, and can be used stably and long-term in reservoirs, landfills, channel linings, tunnels and other fields.
Advantages of smooth geomembrane;
The application of smooth geomembrane in reservoir anti-seepage projects is mainly reflected in its anti-seepage performance, durability, environmental adaptability, construction convenience and economic benefits. The following will analyze its five core advantages in detail.
- Excellent anti-seepage performance to ensure the utilization of water resources; the core goal of reservoir anti-seepage is to prevent water leakage, reduce water resource loss and improve water storage efficiency. Smooth geomembrane has become one of the most effective anti-seepage materials at present due to its near-zero permeability. The hot melt welding process can ensure the integrity of the geomembrane joints and prevent seam leakage.
- High durability, suitable for long-term use; as a long-term water conservancy facility, the durability of its anti-seepage material is crucial. Smooth geomembrane has excellent weather resistance and anti-aging ability, and can maintain long-term stability in extreme climates and complex water quality environments.
- Strong UV resistance: Antioxidants and stabilizers can be added to smooth geomembranes to extend their service life in exposed environments.
Chemical corrosion resistance: Faced with water bodies containing acids, alkalis, salts and microorganisms, geomembranes are not easily corroded and degraded.
Strong resistance to temperature differences: Adapt to environments ranging from -60℃ to +85℃, ensuring stable operation in cold areas and high temperature environments.
After actual engineering verification, the service life of smooth geomembranes buried underground can exceed 50 years, greatly reducing maintenance costs. - Adapt to different geological conditions and improve reservoir safety; the geological conditions of reservoirs are diverse, which may involve complex conditions such as soft soil, rock foundation, and collapsible loess. Smooth geomembranes can adapt to different terrains and reduce the risk of leakage with their high flexibility and tensile strength.
- Enhance the stability of the reservoir area: For areas with soft geology, smooth geomembranes can be used in conjunction with composite geotextiles to enhance structural strength and avoid damage caused by foundation settlement.
Prevent reservoir bank leakage: Geomembranes can be laid along the reservoir bank to prevent lateral water leakage and improve reservoir capacity retention.
Adapt to uneven settlement: The flexible HDPE geomembrane can deform slightly with the settlement of the foundation to avoid the rupture of the anti-seepage layer caused by soil movement. - Convenient construction and shortened project period; compared with traditional concrete or clay anti-seepage measures, the construction of smooth geomembrane is more efficient and faster, which can greatly reduce the construction period and construction difficulty.
- Lightweight material and easy to transport: HDPE geomembrane is light in weight and can be transported in rolls, which is convenient for large-scale laying.
Mature welding process: The double-track hot-melt welding process is adopted to ensure the tightness of the joints and improve the construction quality.
Can be put into use quickly: Compared with the long-term curing of the concrete anti-seepage layer, the geomembrane can be put into use after the laying is completed, which greatly shortens the construction period and improves the project efficiency. - Strong economy and reduces construction and maintenance costs; cost control of reservoir anti-seepage projects is an important factor that construction units pay attention to. The high cost-effectiveness of smooth geomembranes makes it an economical and practical anti-seepage solution.
Low material cost: Compared with concrete and other anti-seepage materials, the unit area cost of geomembranes is more competitive.
Reduced maintenance costs: HDPE geomembranes have long-term durability, reducing the need for maintenance and repair, and reducing long-term operating costs.
Environmentally friendly, reducing ecological impact: Smooth geomembranes can reduce the need for soil extraction from traditional clay layers, reduce damage to the ecological environment, and meet the requirements of sustainable development.

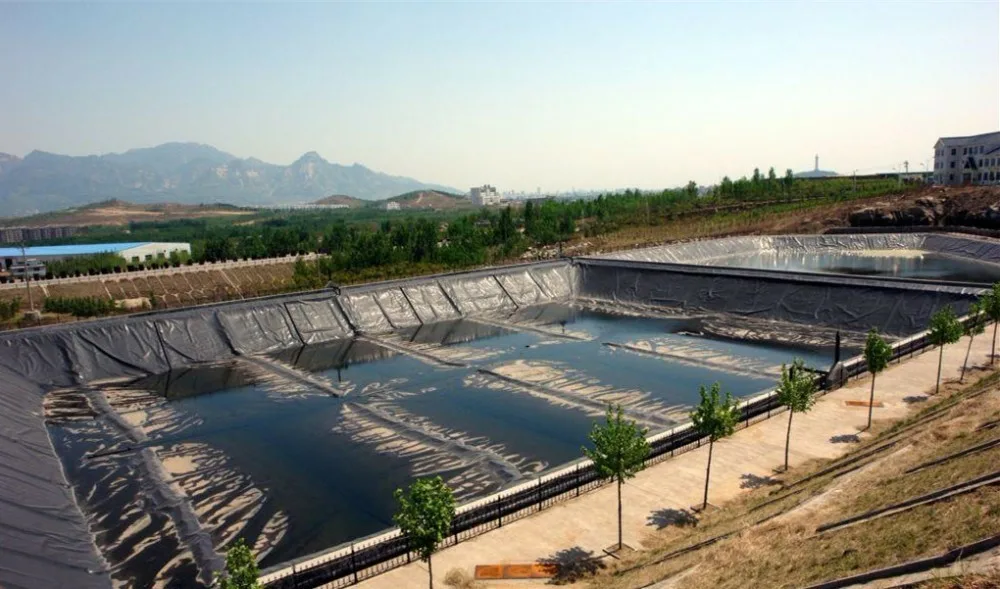

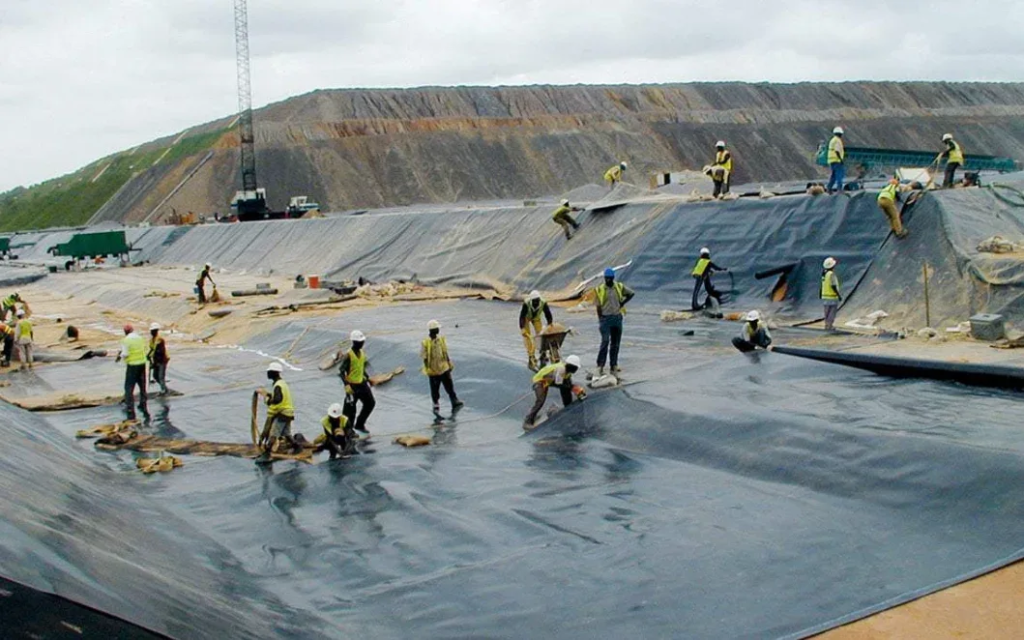

Actual case of smooth geomembrane reservoir anti-seepage
Case 1: Anti-seepage transformation of large reservoirs
Project background: The reservoir has been built for more than 20 years and has leakage problems, and water resources are seriously lost.
Solution: Use 1.5mm thick smooth geomembrane for large-scale paving, and combine with composite geotextile to enhance protection.
Result: The leakage rate is reduced by more than 95%, the reservoir capacity retention rate is greatly improved, and the operating cost is reduced.
Case 2: Anti-seepage of reservoirs in high-cold areas
Project background: The reservoir is located in a cold area, with winter temperatures as low as -30℃, and traditional anti-seepage measures are susceptible to freezing and cracking.
Solution: Select low-temperature resistant HDPE geomembrane and use welding technology to ensure the stability of the joints.
Result: There was no crack leakage problem in the reservoir area in winter, and the project operated stably.
After-sales service of smooth geomembrane
- Technical support: Provide all-round technical support, including product selection, construction guidance, welding process training, etc.
- Construction guidance: The company can dispatch professional technicians to the construction site to guide the construction team to correctly lay, weld and inspect to ensure the quality of the project.
- Quality inspection: Strictly inspect the thickness, tensile strength, impermeability and other indicators of the product before leaving the factory to provide a quality inspection report to ensure that the product meets national and industry standards.
- Maintenance and repair: Provide geomembrane maintenance suggestions to ensure long-term use effects. For sudden damage problems, provide professional repair solutions to reduce maintenance costs.
- Warranty and after-sales service: Provide 10-20 years of product quality assurance to ensure that the product is durable and reliable. A dedicated after-sales service team is set up to answer user questions at any time and respond quickly to customer needs.
Frequently Asked Questions about Smooth Geomembrane (FAQ)
- How to choose the appropriate thickness of smooth geomembrane?
Different projects have different requirements for the thickness of geomembranes. Generally, HDPE geomembranes with a thickness of 1.0mm~2.0mm are recommended for reservoir anti-seepage. The specific selection should be determined according to factors such as water pressure and geological conditions. - What should be paid attention to when welding geomembranes?
Keep the membrane surface clean and dry, free of impurities such as oil and dust.
Avoid high wind speed or rainy days during construction to ensure welding quality.
Use double-track hot melt welding technology to ensure that the joints are tightly sealed and leak-free. - Can smooth geomembranes resist plant root penetration?
HDPE geomembranes have strong resistance to plant root penetration and can effectively prevent plant roots from damaging the anti-seepage layer. They are particularly suitable for projects such as reservoirs and artificial lakes. - How to ensure the service life of geomembranes?
Choose high-quality HDPE geomembranes to ensure that the materials meet relevant standards.
Avoid mechanical damage during construction, and cover the protective layer (such as geotextile) in time after laying.
After construction is completed, check the integrity of the geomembrane regularly and repair it in time if it is damaged. - What is the impact of geomembrane on high and low temperature environments?
HDPE geomembrane is resistant to high temperatures of 85℃ and low temperatures of -60℃. It can adapt to various extreme climatic conditions and avoid cracking or deformation caused by temperature differences.
Conclusion
Smooth geomembrane has become an ideal choice for reservoir anti-seepage projects due to its excellent anti-seepage performance, high durability, environmental adaptability, construction convenience and economy. Reasonable design and construction will further improve its engineering benefits and provide strong support for the sustainable development of water resources management and water conservancy facilities.Contact us to get product information and exclusive quotation for free!
