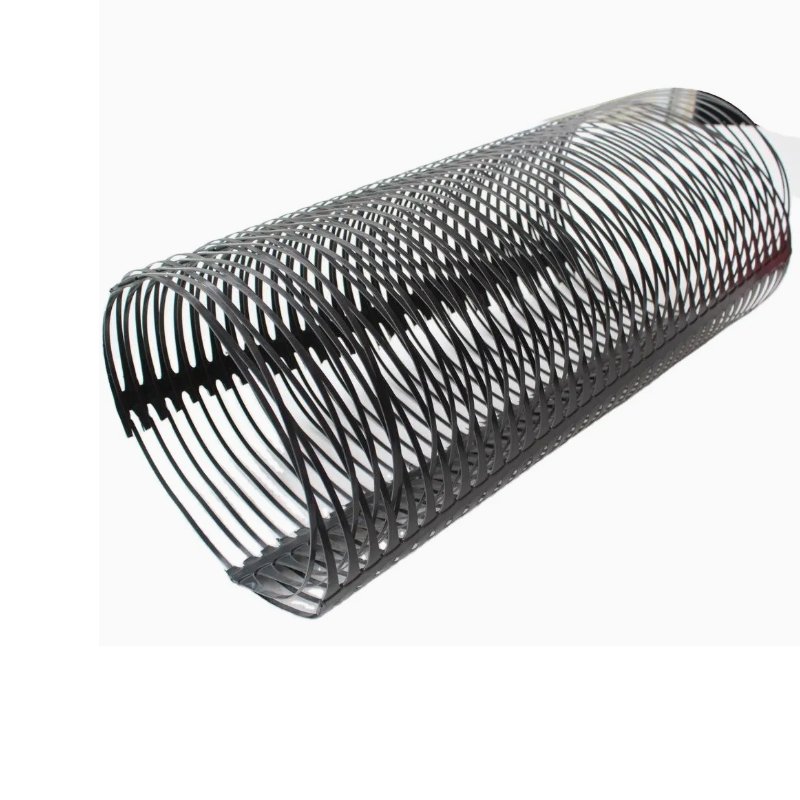

HDPE uniaxial geogrid is a unidirectional tensile grid produced from high-density polyethylene material, which has excellent tensile strength, chemical resistance, and environmental resistance. It is widely used in soil reinforcement, road and dam construction, and other fields. HDPE unidirectional geogrid is commonly used to reinforce weak soil and foundations, providing additional support and stability.
| length | 50-200m |
|---|---|
| width | 1-6.2m |
| Color | White, black |
| Pull | 10-200kn |
HDPE (high-density polyethylene) unidirectional geogrid is a unidirectional tensile grid produced from high-density polyethylene material, which has excellent tensile strength, chemical resistance, and environmental resistance. It is widely used in soil reinforcement, road and dam construction, and other fields. HDPE unidirectional geogrid is commonly used to reinforce weak soil and foundations, providing additional support and stability.
| Spec Item | TGDG35 | TGDG50 | TGDG80 | TGDG90 | TGDG110 | TGDG130 | TGDG160 |
| Width (m) |
1~3 |
1~3 |
1~3 |
1~3 |
1~3 |
1~3 |
1~3 |
| Tensile strength≧(Kn/m) |
35 |
50 |
80 |
90 |
110 |
130 |
160 |
| Nominal Elongation ≦(%) |
11.5 |
11.5 |
11.5 |
11.5 |
11.5 |
11.5 |
11.5 |
| Tensile strength at 2% strain ≧(Kn/m) |
7.5 |
12 |
21 |
23.7 |
29.9 |
38 |
47 |
| Tensile strength at 5% strain ≧(Kn/m) |
21.5 |
23 |
40 |
45.2 |
56.5 |
75.5 |
| Item Spec | TGDG50 | TGDG80 | TGDG110 | TGDG120 | TGDG160 | TGDG200 | TGDG260 |
| Width |
1~3 |
1~3 | 1~3 | 1~3 | 1~3 | 1~3 |
1~3 |
| Tensile strength ≥（KN/m） |
50 |
80 |
110 |
120 |
160 |
200 |
260 |
| Nominal Elongation ≤（%） |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
| Tensile strength at 2% strain ≥（KN/m） |
12 |
26 |
32 |
36 |
45 |
56 |
94 |
| Tensile strength at
5% strain≥（KN/m） |
28 |
48 |
64 |
72 |
90 |
112 |
185 |
1.High Tensile Strength；HDPE uniaxial geogrid provides excellent unidirectional tensile strength, which can effectively reinforce soil or foundation, improve bearing capacity and stability.
2.Low Elongation；Due to the low elongation of HDPE material, the grid will not undergo significant deformation when subjected to loads, maintaining structural stability and preventing soil deformation and settlement.
3.Chemical Resistance；HDPE has strong resistance to chemical corrosion and is suitable for various soil conditions, such as acidic or alkaline environments, especially for demanding environments such as landfills.
4.UV Resistance；HDPE material has strong resistance to ultraviolet radiation and can maintain a long service life even in outdoor exposure environments.
5.Strong Durability and Weather Resistance；High density polyethylene (HDPE) has excellent weather resistance and aging resistance, and is suitable for harsh environments and extreme weather conditions.
6.Good Soil Locking Ability；The mesh structure of the grid can effectively lock in soil particles, enhance the stability of the soil structure, and prevent the loss or dispersion of soil particles.
7.Easy Installation；HDPE uniaxial geogrid is lightweight, easy to install, and can effectively reduce construction time and cost, improving engineering efficiency.
Applications；
1.Road and Railway Base Reinforcement；Used in the construction of infrastructure such as roads and railways to enhance the bearing capacity of soil, prevent settlement, and extend the service life of roads.
2.Embankment and Slope Stabilization；Used in areas such as dams, slopes, and bridgeheads to prevent soil instability such as landslides and collapses, and ensure structural safety.
3.Mining Road Reinforcement；Used for road reinforcement in mining areas, improving the bearing capacity of roads, and preventing road settlement and deformation.
5.Landfill Construction；Applied in the foundation reinforcement and ground stability of landfills to prevent garbage settlement or uneven settlement, and improve foundation stability.
6.Airport Runways and Aprons；Used for foundation reinforcement in airport runways, aprons, and other areas, to withstand the enormous loads during aircraft takeoff and landing.
7.Soil Reinforcement and Infrastructure Construction；Used for soil reinforcement in infrastructure engineering, especially in soft or unstable areas, to enhance engineering foundations by improving soil stability.
8.Temporary Construction；Used in temporary engineering, such as temporary parking lots, construction site roads, etc., to improve construction convenience and soil stability.
Shandong groadgeo Engineering Materials Co., Ltd. is a company dedicated to the research and development, production, and sales of geotechnical materials and related engineering products, committed to providing high-performance engineering materials for industries such as roads, bridges, railways, water conservancy, and environmental protection. Main products; Geotextile, geomembrane, geogrid, geonet, geotextile bag, composite geomembrane, etc. The product is widely used in infrastructure construction, environmental protection, mining, landfill, road reinforcement and other fields. With advanced production technology and rich industry experience, the company has become one of the important suppliers in the geotechnical materials industry.
1.Road foundation reinforcement: In the construction of infrastructure such as roads, airport runways, and railways, geotechnical materials are used to enhance the bearing capacity of the foundation and prevent uneven settlement. For example, geotextiles, geogrids, and geomembranes can be used to separate different soil layers, enhance soil stability, and reinforce foundations.
2.Dams, revetments, and reservoirs: Geotechnical materials are commonly used in hydraulic engineering for anti-seepage, drainage, and reinforcement purposes. Geomembranes, geotextiles, and geogrids are widely used for anti-seepage treatment of dams, lake and reservoir bottoms and sides, to prevent water infiltration and ensure structural stability.
3.Anti seepage and isolation of landfills: Geomembranes and geotextiles play a role in preventing seepage, isolation, and pollution at the bottom and sides of landfills. Geomembranes can effectively prevent the pollution of groundwater sources by leachate from garbage, while geotextiles provide filtration to prevent the infiltration of small particles.
Slope protection: In mountainous and sloping areas, geotechnical materials such as geotextiles, geonets, and geogrids are commonly used to prevent soil erosion. They effectively control soil erosion by stabilizing soil structure, reducing water flow erosion, and promoting vegetation restoration.
1.Geogrid: Used for reinforcing the shore to prevent wave erosion of soil and enhance the stability of protective walls.
2.Geotextile: Used to prevent soil erosion and help fix vegetation. It can improve soil stability, promote plant growth, and reduce soil erosion.
3.Geomembrane: As an anti-seepage material, it prevents seawater from invading the soil layer behind it, ensuring long-term effectiveness of protective measures.
4.Geonet: Used to enhance protective structures, especially in the reinforcement of vertical walls and slopes.
The importance of geotechnical materials in various complex environments and projects, whether it is infrastructure construction, water conservancy engineering, environmental protection, or soil reinforcement and waterproofing, geotechnical materials can play a key role. They help solve engineering problems and ensure the successful implementation of projects by improving soil properties, enhancing structural stability, protecting the environment, and improving durability.
Shandong Groadgeo Engineering Materials Co., Ltd., with its strong technical strength, advanced production equipment, and rich industry experience, has become one of the leading enterprises in the geotechnical materials industry at home and abroad. Through continuous innovation and product optimization, Lutai Company not only occupies an important position in the Chinese market, but also establishes a good brand image in the international market.
1.Advanced production equipment: The company has introduced internationally advanced production equipment and adopted high-tech production processes to ensure that every product meets international quality standards.
2.Independent research and development capability: Lutai Company has a technically strong R&D team that continuously develops new products and innovates technology, striving to maintain technological leadership in the field of geotechnical materials.
3.Quality control: The company has a sound quality management system, and all products have passed ISO9001 quality management system certification to ensure stable and reliable quality of each batch of products.
