Hdpe geomembrane liner Landfill and pond lining projects are an important part of environmental protection projects, in the field of solid waste treatment and water resource protection. HDPE (high-density polyethylene) geomembranes have excellent chemical resistance, permeability resistance, durability and high tensile strength, and are widely used as key materials in landfills, ponds, groundwater isolation and soil pollution prevention and control. This article will introduce in detail the construction scenarios, processes, precautions and important role of hdpe geomembrane liner in landfill and pond linings in environmental protection.
Hdpe Geomembrane liner introduction

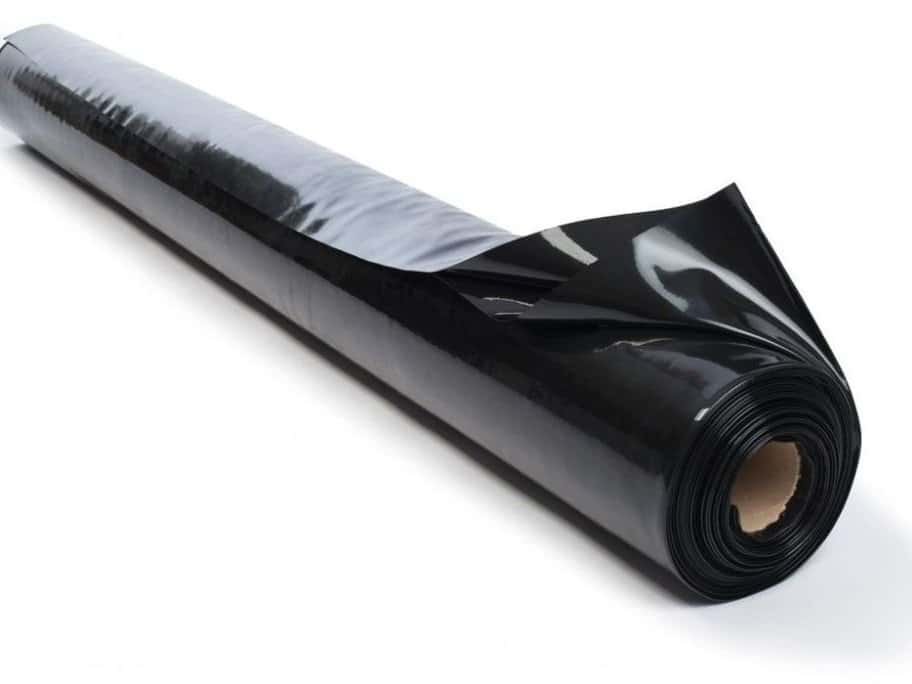

Hdpe geomembrane liner is an impermeable geosynthetic material made of high-density polyethylene material. Through advanced processing technology, a smooth membrane layer is formed, with excellent physical and chemical properties, effectively isolating water, soil and harmful chemicals. hdpe geomembrane liner has the following characteristics:
- Chemical resistance: resistant to acid and alkali corrosion, can effectively prevent the penetration of harmful substances.
- High strength and toughness: high tensile strength, able to withstand complex geological conditions and external forces.
- Low permeability: has an extremely low permeability coefficient, which can effectively prevent the leakage of liquid or gas.
- UV resistance: resistant to UV radiation, suitable for long-term exposure to outdoor environment.
Application scenarios of HDPE Geomembrane liner
Landfill;
In the construction of landfill, the isolation between soil and garbage is crucial. Landfills may contain harmful liquids and gases (such as leachate and biogas), and high-quality Hdpe Geomembrane liner are needed as anti-seepage barriers to ensure that leachate does not pollute the surrounding soil and groundwater sources.
- Leachate control: HDPE Geomembrane liner can prevent leachate from inside landfills from leaking into the surrounding environment.
- Environmental protection and water resource protection: HDPE Geomembrane liner prevent pollutants from entering the groundwater system and help protect water resources.
- Liner system: The bottom and side walls of landfills often use a multi-layer liner system. HDPE geomembranes are used in combination with other anti-seepage materials to improve the anti-seepage effect.

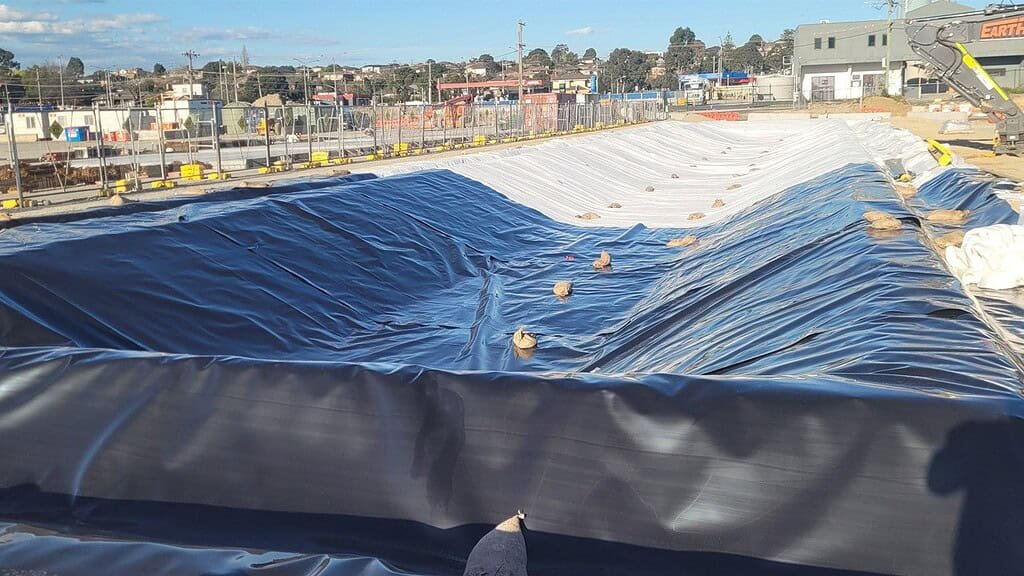

Pond lining;

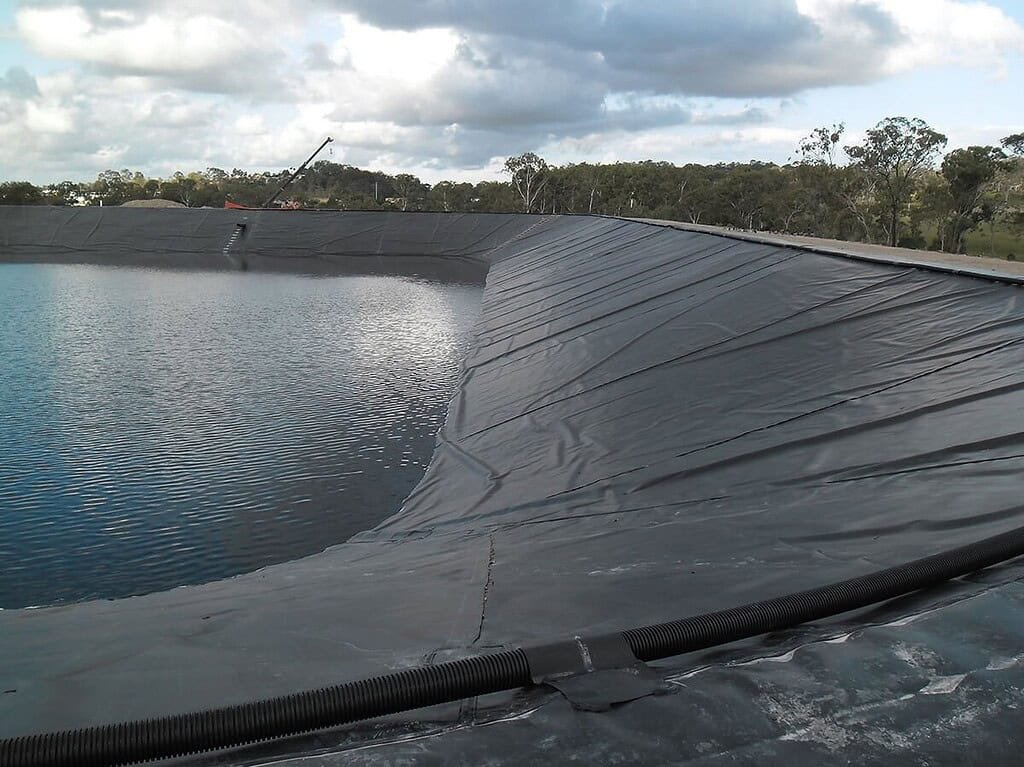

In the construction of ponds or reservoirs, breeding ponds, sewage pools and anti-seepage ponds, HDPE Geomembrane liner are often used as lining materials to prevent water seepage at the bottom of the pond and ensure the stability and environmental protection of the pond water quality.
- Water isolation: HDPE membrane can effectively isolate water from soil and prevent water loss in the pond.
- Environmental protection: Reduce environmental pollution caused by pond leakage.
- Aquaculture pond: In the aquaculture industry, the use of HDPE membrane in pond lining can avoid water pollution, keep the water in the pond clean, and promote the healthy growth of aquatic organisms.
Construction process of HDPE Geomembrane liner
The construction of HDPE Geomembrane liner is highly precise and strictly controlled, and every link of the construction process is directly related to the final engineering effect. The following are typical construction steps:
Preparation before construction
- Site preparation: Clean the construction area and remove all sharp objects, weeds, stones, etc. to ensure that the membrane surface is flat.
- Soil treatment: Level and compact the base soil to avoid damage to the membrane caused by uneven soil.
- Membrane material preparation: According to the design requirements, select HDPE membrane of appropriate thickness and width. And check whether the material meets national standards to ensure that there are no cracks and damage.
Geomembrane laying
- Laying direction: HDPE membrane should be laid along the designed slope or direction to avoid unnecessary waste.
- Laying method: After the membrane is laid, ensure that the membrane surface is in close contact with the base, and avoid wrinkles and bubbles. The laying process should be smooth and orderly.
- Joint treatment: The joints between membranes are usually connected by hot welding (hot plate welding, butt welding and other technologies) to ensure that the joints are tight and leak-free.
Welding process
Hot welding: Use professional hot welding equipment to weld two HDPE membranes together through heating and pressure treatment to ensure that the joints achieve the best anti-seepage effect.
Welding quality inspection: After welding, the quality inspection of the joints is required, including tensile test, penetration test, etc., to ensure that the joints are firm and leak-free.
Quality control and testing
- Welding joint inspection: Check all joints to ensure that there are no leaks, bubbles and wrinkles.
- Permeation test: Perform a penetration test on the entire lining system to ensure that its anti-seepage effect meets the design standards.
- Thickness and strength test: Sampling test the thickness and tensile strength of the HDPE membrane to ensure that the membrane material meets the quality standards.
Protection and maintenance after construction
Cover protection: After construction is completed, the HDPE membrane should be covered and protected in time to avoid exposure to sunlight for too long to prevent ultraviolet rays from damaging the material.
Inspection and maintenance: Regularly inspect the lining system to ensure that there is no damage or aging problem, and repair any defects found in time.
Conclusion
Application of HDPE Geomembrane liner in landfill and pond lining Civil engineering and environmental protection Excellent anti-seepage, tensile strength, chemical resistance and durability, precise construction technology and high standards of quality control can ensure the long-term stability of the project and environmental protection effect. In the future, with the improvement of environmental awareness and technological advancement, HDPE geomembrane will be widely used in more fields to promote sustainable development. If you are interested in our products or have any questions, please feel free to contact us! We will provide you with professional technical support and solutions.
